SDE Series Dual - Axis Small Slew Drive With Different Types Of Motors

Sertifika
Çin Changzhou Hangtuo Mechanical Co., Ltd Sertifikalar
Çin Changzhou Hangtuo Mechanical Co., Ltd Sertifikalar
Ben sohbet şimdi

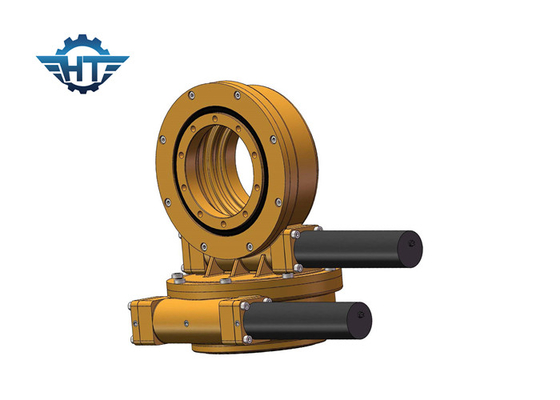

SDE Series Dual - Axis Small Slew Drive With Different Types Of Motors

SDE Series Dual - Axis Small Slew Drive With Different Types Of Motors

Büyük resim :  SDE Series Dual - Axis Small Slew Drive With Different Types Of Motors

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: HangTuo
Sertifika: CE, ISO9001
Model numarası: SDE7"
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 parça
Fiyat: USD 398~456/ pc
Ambalaj bilgileri: KONTRPLAK KUTU
Teslim süresi: 15~45 gün
Ödeme koşulları: L/C, T/T, Western Union
Yetenek temini: ayda 2000 adet

SDE Series Dual - Axis Small Slew Drive With Different Types Of Motors

Açıklama
Malzeme: 50Mn, 42CrMo modeli: SDE7"
Dişli Oranı: 57:1 Nominal Çıkış Torku: 2000 Nm
Tutma Torku: 13500 Nm Devirme Torku: 13200 Nm
Yeterlik: %40 standart renk: RAL 9006
Vurgulamak:

solar tracker drive

,

slewing drive for solar tracking system



SDE Series Dual Axis Small Slew Drive With Different Types Of Motors For Tower Solar Thermal Power



Description



History of Tower Photothermal



The design concept of the tower solar thermal power generation system was proposed by the former Soviet Union in the 1950s. In 1950, the former Soviet Union designed the world's first small tower-type solar thermal power station, and carried out extensive and fundamental exploration and research on solar thermal power generation technology. According to incomplete statistics, there were more than 20 megawatt-scale solar thermal power experimental power stations built in the world from 1981 to 1991, the main form of which is the tower power station, with a maximum power generation of 80 MW. In July 2013, China's Qinghai Zhongkong Delingha 50MW tower solar thermal power station-Phase I-10MW project was successfully integrated into Qinghai Power Grid, indicating that China's self-developed solar thermal power generation technology has taken solid steps toward commercial operation.



Slew Drives Applied In Tower CSP



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.05 Yes 21kg
5" 37:1 650 5000 16 27 9200 40% ≤0.05 Yes 32kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.05 Yes 54kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.05 Yes 88kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.05 Yes 157kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.05 Yes 481kg



Features



1. High backholding torque to improve the solar tracking system's safety

2. Enveloping worm drive inside

3. Multi tooth contact to ensure high load

4. Self-locking function



Applicatons



SDE Series Dual - Axis Small Slew Drive With Different Types Of Motors 0



Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
